Migrating to Apache Iceberg: Strategies for Every Source System

05 Mins read
Migrating to Apache Iceberg: Strategies for Every Source System

Read the complete Apache Iceberg Masterclass series:

Most organizations do not start with Iceberg. They have years of data in Hive tables, data warehouses, CSV files, databases, and Parquet directories. Moving this data to Iceberg is not an all-or-nothing project. The best migrations happen incrementally, one dataset at a time, with no disruption to existing consumers.

Three Migration Strategies

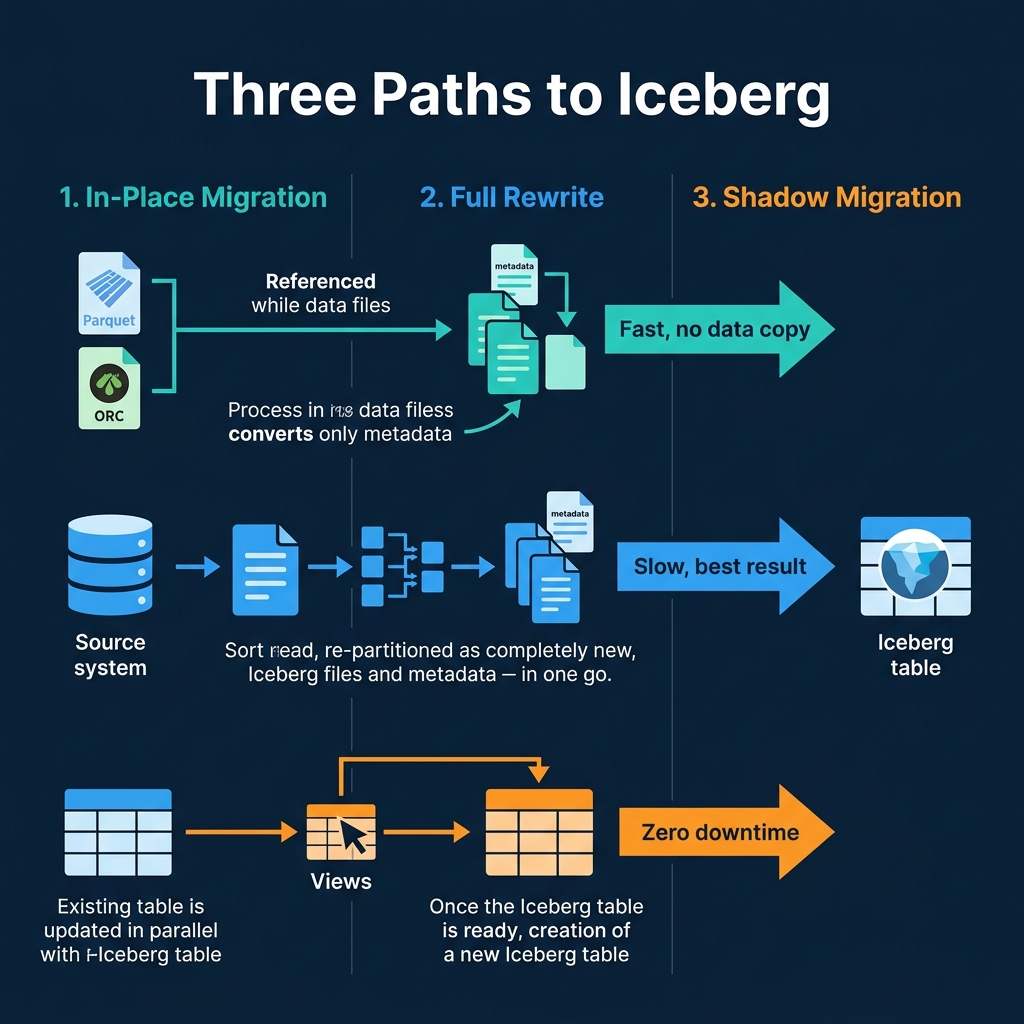

Three paths to Iceberg: in-place migration, full rewrite, and shadow migration

1. In-Place Migration (Metadata Only)

In-place migration creates Iceberg metadata over existing Parquet or ORC files without copying or moving them. The data files stay exactly where they are; only new Iceberg metadata is created to track them.

Spark example:

CALL system.migrate('db.existing_hive_table')

This converts a Hive table to Iceberg by scanning its files and creating the Iceberg metadata tree (metadata.json, manifest list, manifest files) that references them. The Parquet files are untouched.

Pros: Fast. No data movement. The table becomes queryable as Iceberg immediately.

Cons: The existing file layout (sizes, partitioning, sort order) is inherited. If the original files are poorly organized, you inherit those problems. Requires the original files to be in Parquet or ORC format.

2. Full Rewrite (CTAS)

A full rewrite reads data from any source and writes it as a new Iceberg table with optimal partitioning and file sizes:

-- Spark
CREATE TABLE iceberg_catalog.analytics.orders
USING iceberg
PARTITIONED BY (day(order_date))
AS SELECT * FROM hive_catalog.legacy.orders

-- Dremio
CREATE TABLE analytics.orders
PARTITION BY (day(order_date))
AS SELECT * FROM legacy_source.public.orders

Pros: Best result. Optimal file sizes, correct sort order, proper partitioning. The table is perfectly organized from day one.

Cons: Requires reading and writing all data, which takes time and compute resources. The source system must be available during the migration.

3. Shadow Migration (Build and Swap)

Shadow migration builds the Iceberg table alongside the existing source, then swaps consumers from old to new when ready:

  1. Create a new Iceberg table with the desired schema and partitioning
  2. Backfill historical data from the legacy source
  3. Set up incremental sync to keep the Iceberg table current
  4. Validate data quality between old and new
  5. Swap consumer views from legacy to Iceberg

Pros: Zero downtime. Consumers never see a disruption. You can validate the migration before committing to it.

Cons: Temporarily doubles storage costs. Requires maintaining two copies during the transition.

Choosing the Right Strategy

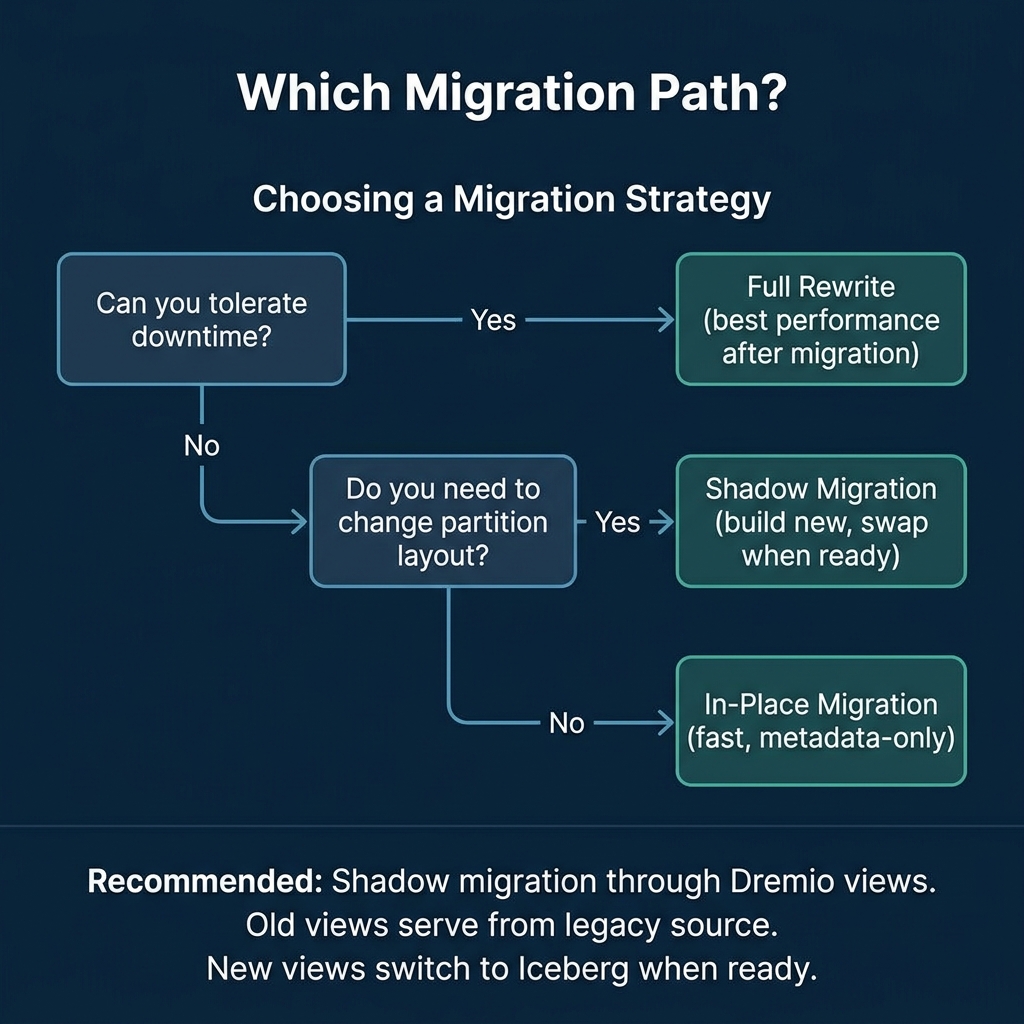

Decision tree for selecting the right migration strategy based on downtime tolerance and layout changes

SourceRecommended Strategy
Hive table (Parquet files)In-place migration, then compact
Data warehouse (Snowflake, Redshift)Full rewrite via Dremio federation
CSV/JSON files in S3Full rewrite with COPY INTO
PostgreSQL/MySQLFull rewrite or shadow migration
Delta Lake tablesIn-place conversion or rewrite
Production system (no downtime)Shadow migration with view swap

The View Swap Pattern

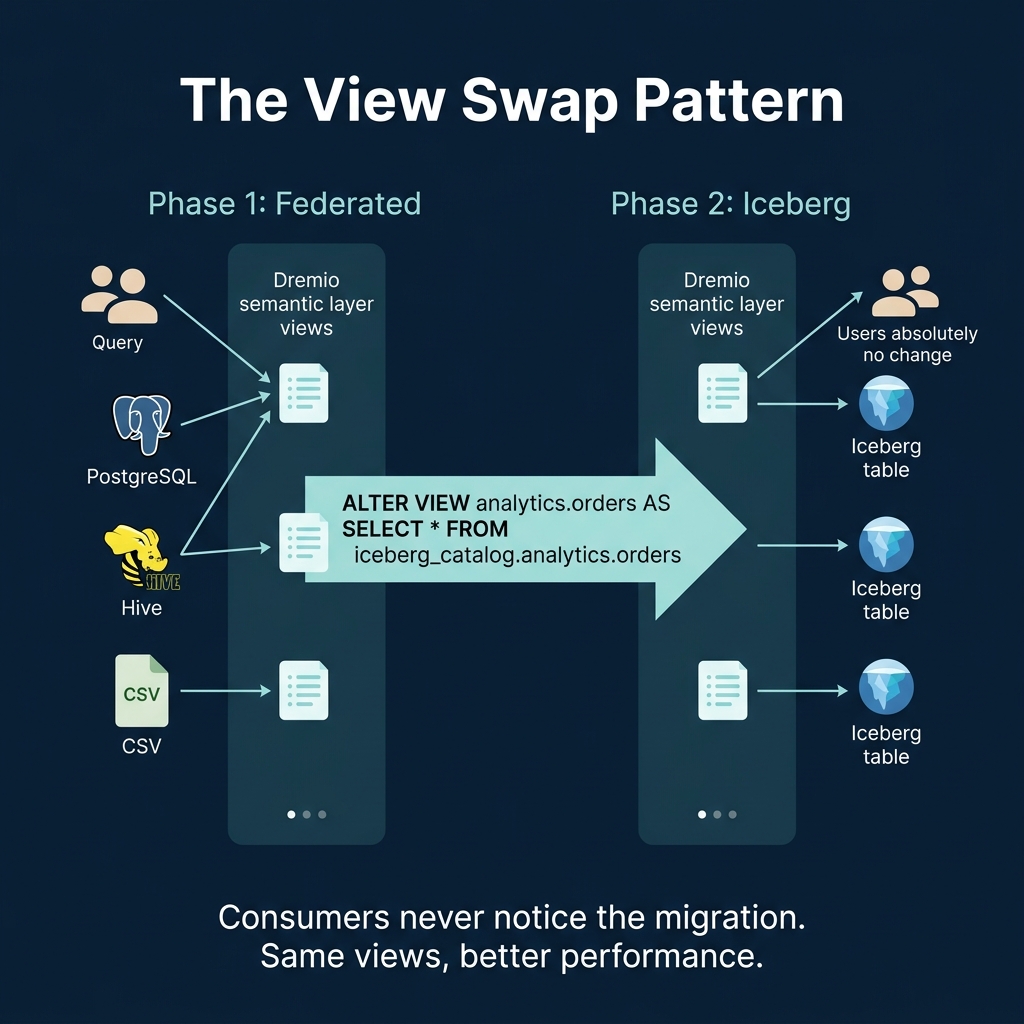

The zero-downtime view swap pattern: views point to legacy first, then switch to Iceberg

The view swap pattern is the recommended approach for production migrations. It uses Dremio’s semantic layer to create an abstraction between consumers and the underlying data:

Phase 1: Federation

Create views in Dremio that point to the legacy data source:

CREATE VIEW analytics.orders AS
SELECT order_id, customer_id, order_date, amount, status, region
FROM postgres_source.public.orders

All consumers (dashboards, reports, notebooks) query through these views. They do not know or care where the data physically lives.

Phase 2: Build Iceberg

Create and populate the Iceberg table:

-- Create the Iceberg table
CREATE TABLE iceberg_data.analytics.orders (
    order_id BIGINT, customer_id BIGINT,
    order_date DATE, amount DECIMAL(10,2),
    status VARCHAR, region VARCHAR
) PARTITION BY (day(order_date))

-- Backfill from the legacy source
INSERT INTO iceberg_data.analytics.orders
SELECT * FROM postgres_source.public.orders

Phase 3: Validate

Compare the two datasets to confirm data integrity:

SELECT
  (SELECT COUNT(*) FROM postgres_source.public.orders) AS legacy_count,
  (SELECT COUNT(*) FROM iceberg_data.analytics.orders) AS iceberg_count

Beyond row counts, validate aggregates (total amounts, distinct customer counts) and spot-check individual records. A comprehensive validation script should compare:

  • Total row count
  • Column-level checksums or hash aggregates
  • Distinct value counts for key columns
  • Boundary values (MIN/MAX) for numeric and date columns
  • Sample of specific records matched by primary key

Only proceed to the swap after all validation checks pass.

Phase 4: Swap

Update the view to point to the Iceberg table:

CREATE OR REPLACE VIEW analytics.orders AS
SELECT order_id, customer_id, order_date, amount, status, region
FROM iceberg_data.analytics.orders

Consumers notice nothing. The view name is the same. The query interface is the same. But now the data is served from Iceberg with all of its advantages: time travel, hidden partitioning, metadata-driven pruning, and automatic optimization.

Migrating One Table at a Time

The view swap pattern enables incremental migration. You do not need to migrate everything at once:

  1. Week 1: Migrate the highest-value table (e.g., orders)
  2. Week 2: Migrate the next table (e.g., customers)
  3. Continue until all critical tables are on Iceberg

During the transition, Dremio’s federation queries legacy and Iceberg tables together. A join between a PostgreSQL table and an Iceberg table works the same as a join between two Iceberg tables. The migration is invisible to consumers.

Post-Migration Checklist

After migrating each table:

Common Migration Pitfalls

Migrating without testing query performance: Always benchmark critical queries against the new Iceberg table before switching production traffic. Iceberg’s partition layout and file organization affect performance, and a migration can make some queries faster but others slower if the partition strategy is wrong.

Skipping the validation phase: Data discrepancies between the old and new systems are more common than expected. Schema differences, timezone handling, null semantics, and data type precision can all cause subtle mismatches. Validate thoroughly.

Migrating everything at once: Large “big bang” migrations carry high risk. If something goes wrong, rolling back is complex and time-consuming. Migrate one table at a time, validate each one, and build confidence incrementally.

This completes the Apache Iceberg Masterclass. The series covered table formats, metadata, performance, partitioning, writes, catalogs, maintenance, tooling, and migration. For hands-on practice, start a Dremio Cloud trial and follow the workflow in Part 14.
